一、主要技術參數

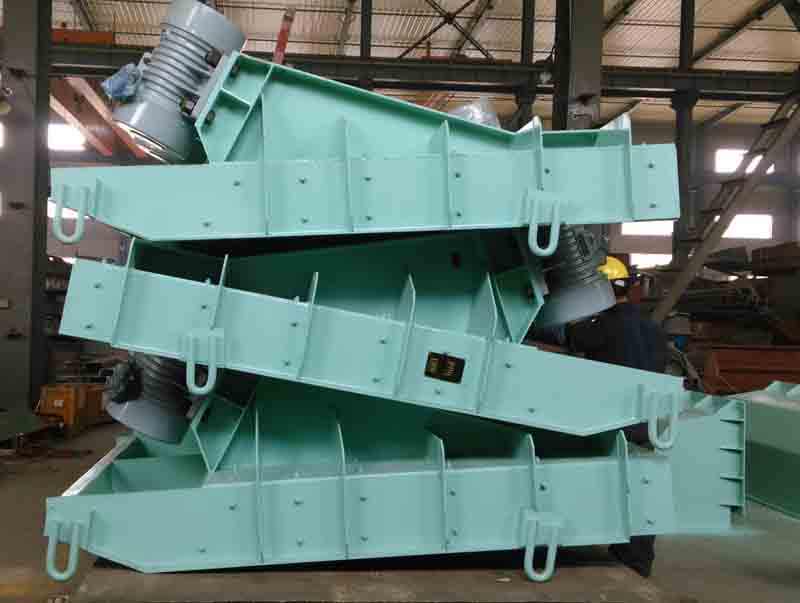

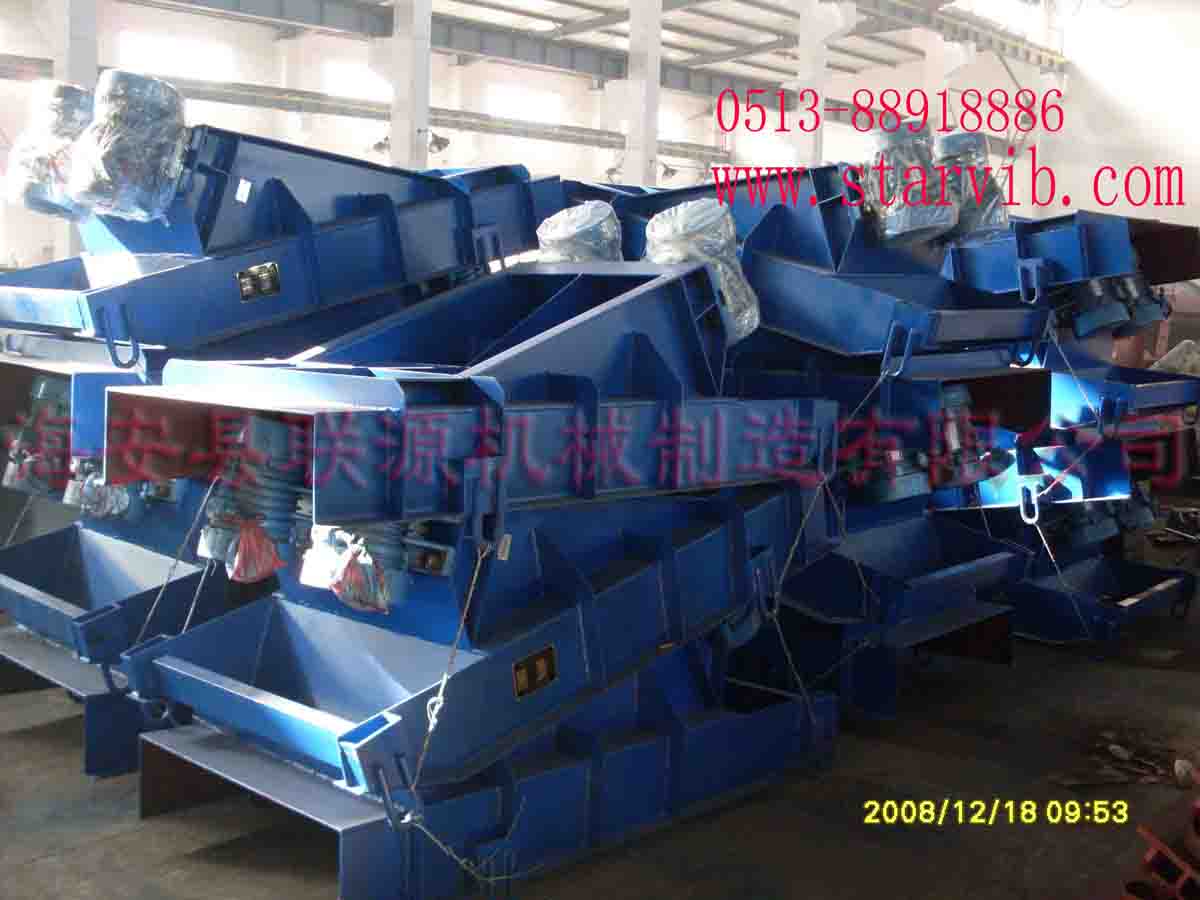

GZG電機振動給料機（電機側置式）執行標準JD/T7555-94《CZC慣性振動給料機》，振動電機執行標準JB5330-91《振動源三相異步電動機》。
型號 | 槽型尺寸 寬x長x高 (mm) | 額定給料量 | zui大給料力度 | 振動頻率(r/min) | 雙振幅 | 電機型號 | 額定電壓 | 額定電流(A) | 功率(KW) | 重量 | |
水平(t/h) | -10°(t/h) | ||||||||||
GZG40-4 | 400×1000×200 | 30 | 40 | 100 | 1450 | 4 | YZO-5-4 | 380 | 2×0.87 | 2×0.25 | 175 |
GZG50-4 | 500×1000×200 | 60 | 85 | 150 | 4 | YZO-5-4 | 2×0.87 | 2×0.25 | 210 | ||
GZG63-4 | 630×1250×250 | 110 | 150 | 200 | 4 | YZO-10-4 | 2×1.76 | 2×0.55 | 380 | ||
GZG70-4 | 700×1029×250 | 120 | 170 | 200 | 4 | YZO-10-4 | 2×1.76 | 2×0.55 | 400 | ||
GZG80-4 | 800×1500×250 | 160 | 230 | 250 | 4 | YZO-16-4 | 2×2.17 | 2×0.75 | 570 | ||
GZG90-4 | 900×1483×250 | 180 | 250 | 250 | 4 | YZO-16-4 | 2×2.17 | 2×0.75 | 620 | ||
GZG100-4 | 1000×1750×250 | 270 | 380 | 300 | 4 | YZO-20-4 | 2×3.18 | 2×1.1 | 750 | ||
GZG110-4 | 1100×1673×250 | 300 | 420 | 300 | 4 | YZO-20-4 | 2×3.18 | 2×1.1 | 840 | ||
GZG125-4 | 1250×2000×315 | 460 | 650 | 350 | 4 | YZO-32-4 | 2×3.80 | 2×1.5 | 1050 | ||
GZG130-4 | 1300×2040×300 | 480 | 670 | 350 | 4 | YZO-32-4 | 2×3.80 | 2×1.5 | 1100 | ||
GZG150-43 | 1500×2250×300 | 720 | 1000 | 500 | 4 | YZO-50-4 | 2×5.57 | 2×2.2 | 1420 | ||
GZG160-4 | 1600×2500×315 | 770 | 1100 | 500 | 4 | YZO-50-4 | 2×5.57 | 2×2.2 | 1500 | ||
GZG180-4 | 1800×2325×375 | 900 | 1200 | 500 | 3 | YZO-75-4 | 2×8.90 | 2×3.7 | 2450 | ||
GZG200-4 | 2000×3000×400 | 1000 | 1400 | 500 | 3 | YZO-75-4 | 2×8.90 | 2×3.7 | 2800 | ||
GZG70-6 | 700×1029×250 | 130 | 180 | 200 | 960 | 5 | YZO-10-6 | 2×2.47 | 2×0.75 | 440 | |
GZG80-6 | 800×1500×250 | 170 | 250 | 250 | 5 | YZO-10-6 | 2×2.47 | 2×0.75 | 540 | ||
GZG90-6 | 900×1483×250 | 200 | 270 | 250 | 5 | YZO-10-6 | 2×2.47 | 2×0.75 | 590 | ||
GZG100-6 | 1000×1750×250 | 290 | 410 | 300 | 5 | YZO-20-6 | 2×4.47 | 2×1.5 | 780 | ||
GZG110-6 | 1100×1637×250 | 320 | 450 | 300 | 5 | YZO-20-6 | 2×4.47 | 2×1.5 | 870 | ||
GZG125-6 | 1250×2000×315 | 500 | 700 | 350 | 5 | YZO-20-6 | 2×4.47 | 2×1.5 | 1010 | ||
GZG130-6 | 1300×2040×300 | 520 | 720 | 350 | 5 | YZO-20-6 | 2×4.47 | 2×1.5 | 1060 | ||
GZG150-6 | 1500×2250×300 | 780 | 1080 | 500 | 5 | YZO-30-6 | 2×6.22 | 2×2.2 | 1420 | ||
GZG160-6 | 1600×2500×315 | 830 | 1190 | 500 | 5 | YZO-30-6 | 2×7.85 | 2×3.0 | 1520 | ||
GZG180-6 | 1800×2325×375 | 970 | 1320 | 500 | 5 | YZO-30-6 | 2×9.37 | 2×3.7 | 2470 | ||
GZG200-6 | 2000×3000×400 | 1300 | 1800 | 500 | 5 | YZO-30-6 | 2×13.6 | 2×5.5 | 3120 | ||

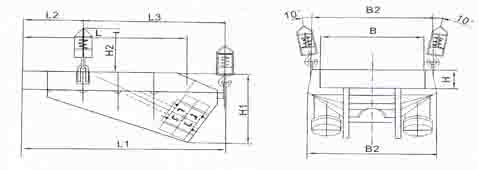

二、外形及安裝尺寸
.jpg)
型號 | B | L | H | B2 | B3 | L1 | L2 | L3 | H1 | H2 |
GZG40-4 | 400 | 1000 | 200 | 500 | 750 | 1337 | 361 | 950 | 600 | 302 |
GZG50-4 | 500 | 1000 | 200 | 626 | 800 | 1374 | 418 | 930 | 630 | 335 |
GZG63-4 | 630 | 1250 | 250 | 782 | 1000 | 1648 | 515 | 1100 | 767 | 395 |
GZG70-4 | 700 | 1029 | 302 | 850 | 1010 | 1548 | 465 | 1050 | 787 | 445 |
GZG80-4 | 800 | 1500 | 250 | 957 | 1180 | 1910 | 550 | 1320 | 850 | 618 |
GZG90-4 | 900 | 1483 | 307 | 1057 | 1170 | 2003 | 500 | 1470 | 960 | 564 |
GZG100-4 | 1000 | 1750 | 250 | 1157 | 1362 | 2190 | 650 | 1500 | 900 | 564 |
GZG110-4 | 1100 | 1673 | 320 | 1257 | 1362 | 2151 | 630 | 1485 | 970 | 636 |
GZG125-4 | 1250 | 2000 | 315 | 1426 | 1506 | 2540 | 750 | 1750 | 1030 | 660 |
GZG130-4 | 1300 | 2040 | 383 | 1470 | 1556 | 2544 | 750 | 1750 | 1084 | 660 |
GZG150-4 | 1500 | 2250 | 381.5 | 1676 | 1776 | 2794 | 800 | 1950 | 1220 | 693 |
GZG160-4 | 1600 | 2500 | 315 | 1776 | 1850 | 3050 | 910 | 2100 | 1110 | 693 |
GZG180-4 | 1800 | 2325 | 478 | 1980 | 2210 | 2885 | 735 | 2100 | 1260 | 788 |
GZG200-4 | 2000 | 3000 | 400 | 2180 | 2400 | 3490 | 775 | 2665 | 1220 | 840 |
GZG70-6 | 700 | 1029 | 302 | 850 | 1010 | 1548 | 465 | 1050 | 791 | 418 |
GZG80-6 | 800 | 1500 | 250 | 957 | 1180 | 1910 | 550 | 1320 | 850 | 616 |
GZG90-6 | 900 | 1483 | 307 | 1057 | 1170 | 2003 | 500 | 1470 | 960 | 519 |
GZG100-6 | 1000 | 1750 | 250 | 1157 | 1238 | 2190 | 650 | 1500 | 912 | 562 |
GZG110-6 | 1100 | 1673 | 320 | 1257 | 1362 | 2151 | 630 | 1485 | 980 | 566 |
GZG125-6 | 1250 | 2000 | 315 | 1426 | 1506 | 2540 | 750 | 1750 | 1009 | 668 |
GZG130-6 | 1300 | 2040 | 383 | 1476 | 1556 | 2544 | 750 | 1750 | 1119 | 674 |
GZG150-6 | 1500 | 2250 | 381.5 | 1676 | 1776 | 2794 | 800 | 1950 | 1220 | 692 |
GZG160-6 | 1600 | 2500 | 315 | 1776 | 1876 | 3050 | 910 | 2100 | 1101 | 724 |
GZG180-6 | 1800 | 2325 | 478 | 1980 | 2210 | 2880 | 735 | 2100 | 1318 | 841 |
GZG200-6 | 2000 | 3000 | 400 | 1351 | 2400 | 3680 | 775 | 2855 | 1560 | 984 |
三、工藝裝置

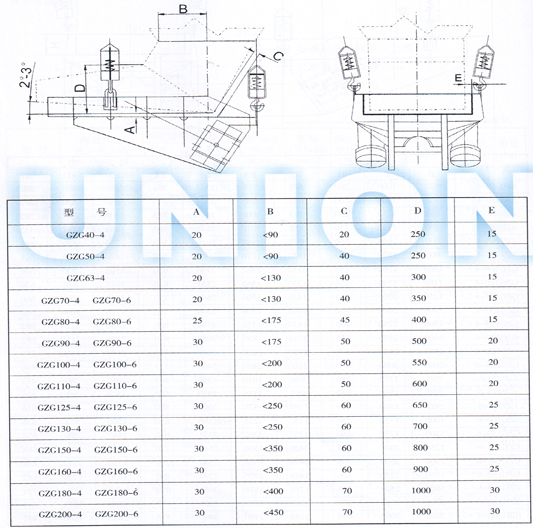

GZG電機振動給料機（電機側置式）電機轉動給料機設計時未考慮倉壓倒影響，為保證給料機的正常運行，必須盡量減少倉壓對給料機的影響。因此在設計溜嘴時，應用溜嘴的后側板承擔料柱的垂直壓力。溜嘴形式及配置尺寸可參考圖及表中數值。
